5. Configure Backup
When you click on Configure Backup from the To Do List, the
Wizard below starts.
Click Next to get started.
The first choice you are presented with is where to back your
You can backup to a tape drive or a hard drive.
If you choose the hard drive, it can be fixed or removable.
In this example we are backing up to a folder on a removable hard drive.
Next you are presented with the choice of what to backup.
We are going to backup everything on the system for our example.
Note the Wizard is smart enough to automatically exclude the folder we are
backing up to.
The SBS Dev Team thinks of just about everything, that is what makes SBS such a
If you are backing up to tape ClickME to
jump to important info.
Next the Wizard wants to know when to backup. This is
something you need to discuss
with the client. Some companies need a backup every day, others can live with a
backup, or something in between. Note there is only a single backup schedule.
Some folks have found that they need more options, such as daily backup to a
andy a weekly backup to tape. Sean Daniels has written up a procedure on his
to help out in these circumstances. Of course the usual warning applies, use his
your own risk. It is not supported by Microsoft, Sean or Me.
Next you set options for some really cool new features of SBS
2003. You can choose
how long to save copies of deleted messages. I was a little disappointed that
backup still does not offer brick level backup of the Exchange Store, but this
is pretty close to that functionality.
On this same screen you set you much disk space is reserved
for Volume Shadow Service,
which is what allow the users to retrieve deleted items (and versions of items)
home directory. This ability requires the client machines to be running XP Pro.
That is all there is to configuring the Backup. Click Finish
on the obligatory Wizard
Summary screen and the wizard does it 's magic. Your system is now protected
an automated Backup.
When the Wizard finishes you will get this last screen
letting you know all went well.
Return to TO DO LIST
Extra Info for using a tape drive
If you are backing up to tape, you will of course check the

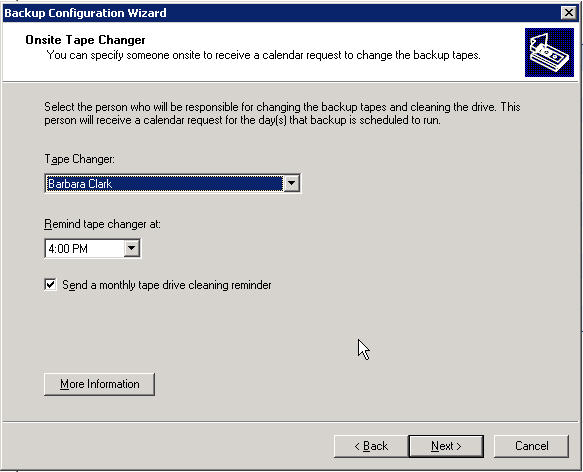

When you choose tape you will get an extra screen, which is
where you can select
someone to get reminders to change the tape and clean the drive. Once again
to the SBS Dev Team for thinking up these little extras that just make life
Return to main thread
